Beryl

Beryl offer a broad range of standard electrolytic capacitor products as well as tailored solutions, so if you can't find what you looking for then get in touch - Beryl may still be able to offer the product that you need.

Aluminium Electrolytic
Capacitors

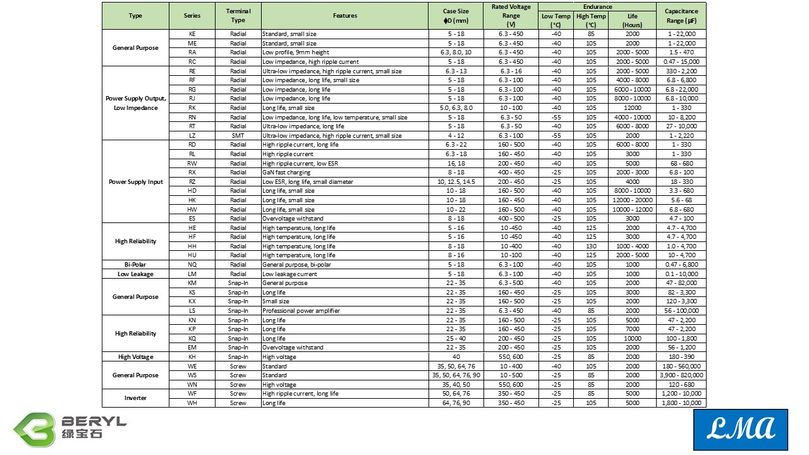

Beryl offer a broad range of Aluminium electrolytic capacitors in values from 0.1µF - 820,000µF with voltage ratings 6.3 - 630V. Sizes range from 4 - 90mm diameter with radial leaded, Snap-In or screw terminals. Full details can be found at Aluminium Electrolytic Capacitors - Beryl (zq-beryl.com) or check out the Aluminium Electrolytic capacitor short form guide below.

Hybrid Conductive Polymer Electrolytic Capacitors

Hybrid conductive polymer electrolytic capacitors offer all the advantages of solid conductive polymer solutions, but with the added benefits of better endurance and humidity withstand capability, lower leakage current, increased tolerant to high ripple & inrush currents and an open circuit failure mode. Hybrid conductive polymer solutions from Beryl come in capacitance values from 10µF - 560µF with voltage ratings up to 160V. For full details see Hybrid Conductive Polymer Capacitors - Beryl (zq-beryl.com) or check out the Polymer Electrolytic capacitor short form guide below.

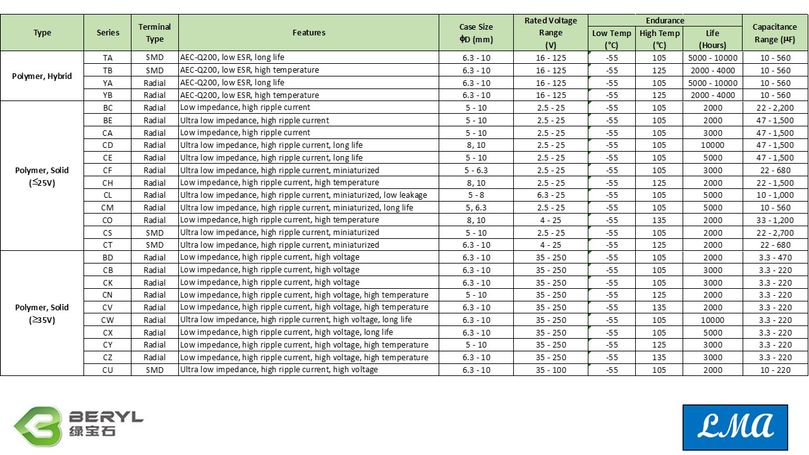

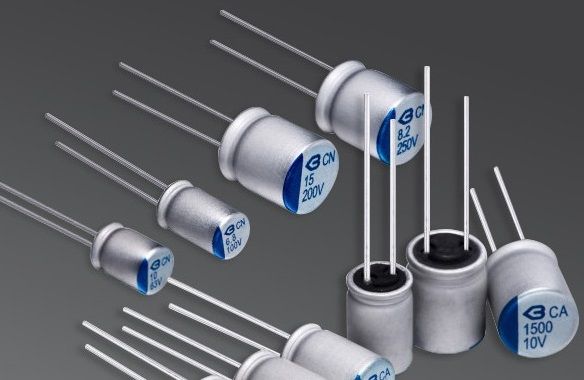

Solid Conductive Polymer Electrolytic Capacitors

Solid conductive polymer electrolytic capacitors offer major advantages over standard Aluminium electrolytic products. Ripple current ratings are up to 10 times higher, ESR is significantly lower and operating life considerably longer. Beryl offer market leading solutions in capacitance values from 3.3µF - 1500µF with voltage ratings up to 250V. Full details can be found at  Solid Conductive Polymer Capacitors - Beryl (zq-beryl.com) or check out the Polymer Electrolytic capacitor short form guide below.

Short from guides, application information and other useful documents

Product & application videos

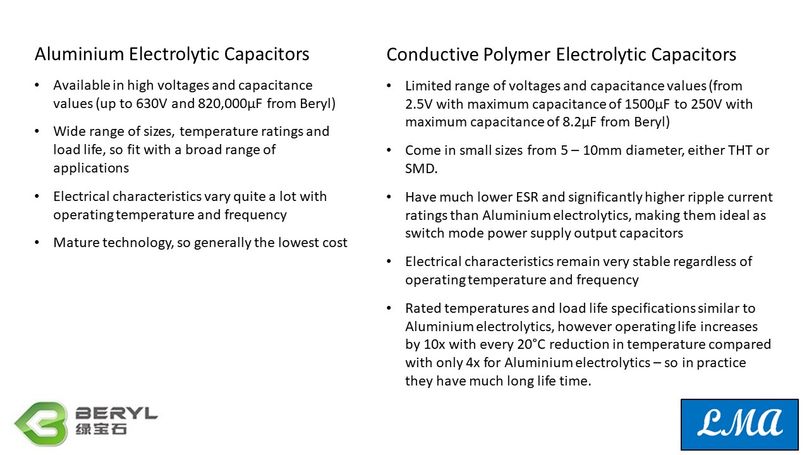

Advantages of Conductive Polymer Capacitors

Guide to Aluminium electrolytic capacitor life
