Eaton Power Products
Eaton offers power products for circuit protection, current sensing and filtering including fuses, TVS diodes, current shunts, DC link capacitors, AC filter capacitors, pulse capacitors and X1/X2 & Y1/Y2 filter capacitors.
All these products are designed for use in power applications and exhibit a combination of high voltage and high current making them ideal for use in xEV, motor drives, inverters and high voltage/power battery systems.

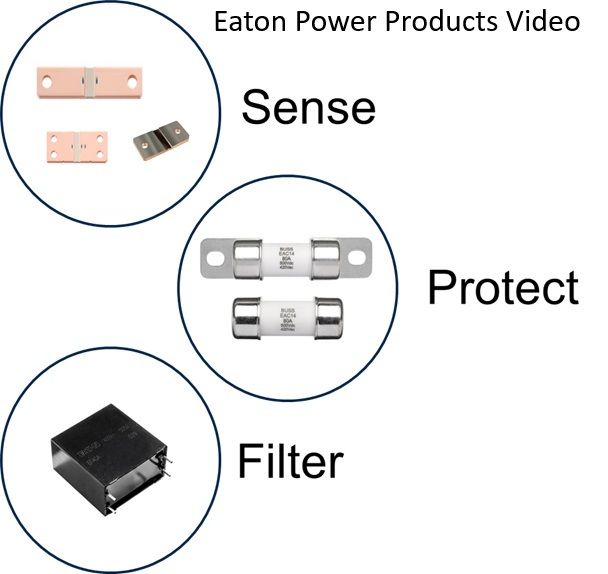

More detailed information about Eaton's power products can be found in the links, videos, technical note, use case and short form guides below:
xEV Electronic fuses (100V- 1KVdc up to 175A)
Bolt down fuses rated 125Vdc, 80 A to 500 A
Metal shunt resistors 3 - 40W AEC-Q200
Film capacitors for ac and dc filtering rated up to 850Vac and 4KVdc
High Power TVS diode protection up to 15kW and 10kA
High power TVS diodes | Automotive | up to 12kW

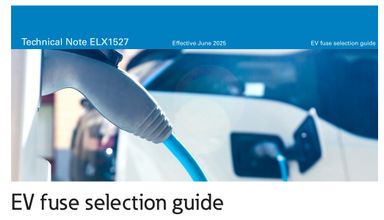

EV Fuses from Eaton
Eaton offer a range of 10mm and 14mm diameter fuses, with voltage ratings from 500Vac & dc to 1000Vdc, for EV applications ranging from low current battery voltage sensing to auxiliary circuit protection.
Eaton's DC Link Capacitors
Eaton offer DC link capacitor solutions in radial leaded PCB mount and aluminium can formats with voltage ratings up to 4kV and temperatures up to 125 degres celcius.
High Power TVS Diodes from Eaton
Eaton TVS diodes are available for automotive and industrial applications with voltage ratings from 5 - 512V, power ratings up to 15kW and peak currents up to 10kA.
Film capacitor Technical Note (Safety, DC-Link, Pulse & AC-filtering)

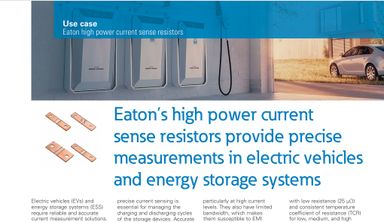

High Current Sense Resistor Use Case

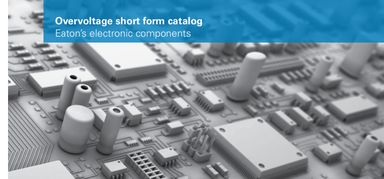

TVS Diode Short Form Guide
