Product Focus
Sensors from Eaton

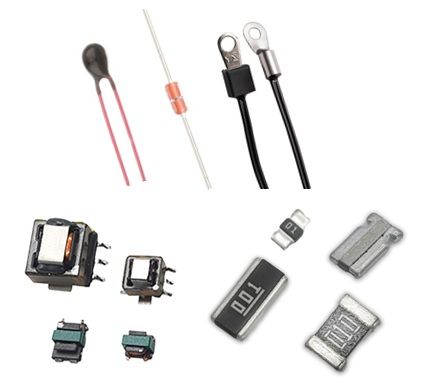

Eaton offers sensor products for current and temperature measurement, these include NTCs, PTCs, current sense resistors and transformers.

Current sense resistors are available using metal foil, metal strip and shunt technologies with resistance values from 0.1 - 910 milli Ohms and current ratings up to 15A. While current sense transformers options are available with turns ratios from 20:1 to 200:1 with maximum current ratings from 7A - 15A.

Both PTC and NTC thermistors are available in 0603 & 0805 SMT packages for temperatures up to 160 degrees centigrade. NTC products are also offered in leaded glass and epoxy coated packages and with wire leaded lug construction.

More detailed information about Eaton's temperature and current sensing products can be found in the link, videos, technical notes and application guide below:

Sensors (eaton.com)



What are NTC Thermistors?

NTC thermistor characteristics and selection criteria explained.

Eaton's Leaded Glass & Epoxy Sealed NTCs

Epoxy coated NTC thermistors are a cost-effective temperature sensor that meet the temperature sensing needs of a broad range of electronic applications. While glass coated solutions provide superior long term stability and reliability as well as fast thermal response.

Eaton's Full NTC Product Range Overview

Overview of complete Eaton NTC product offering, including THT epoxy coated and glass solutions, wire leaded lug construction and SMT products in 0402, 0603 & 0805 sizes.

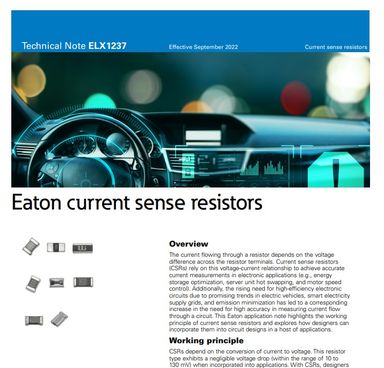

Current Sense Resistor Technical Note

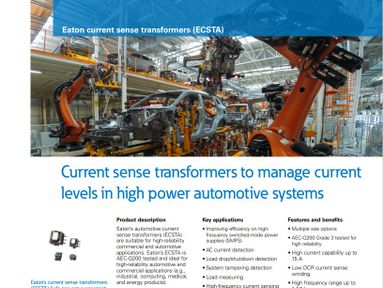

Current Sense Transformers for Automotive Systems

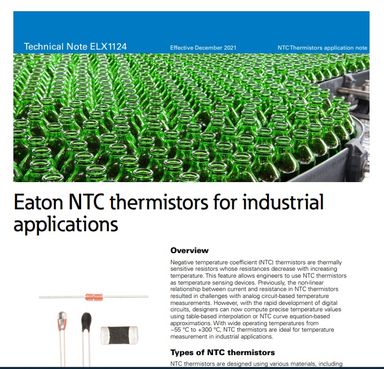

NTC Temperature Sensor Technical Note

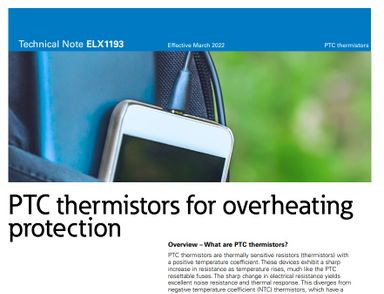

PTC Temperature Sensor Technical Note
